Tremor Tech offers several long and short range Passive Infrared Sensors (PIR) for use in human and vehicle detection.

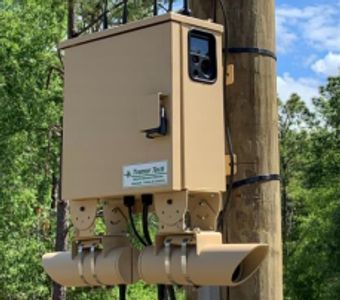

Passive Infrared Sensors can be combined with different types of detection systems to trigger alerts and camera systems. Two of our most popular Passive Infrared detection systems includes the combination of a long-range curtain PIR sensor with a wireless camera system (TTech-81-CCK & TTech-81-2CCK).
The TTech-81-CCK and 2CCK have been designed as a quick deploy, integrated border security sensor system with photo and video confirmation of detected targets. Mounted above ground level (approximately 15-20ft), the PIR sensor establishes an invisible detection curtain of coverage extending out from the sensor platform and down to the ground.
With an extremely narrow field of detection these, sensor systems eliminate false alerts generated by common wide-angle PIR sensors. A built-in automatic leveling circuit allows the system to actively adjust to environmental changes such as heat, wind, and shadows without generating false alerts.
The included solar panel allows for the sensor systems to stay charged and active all day and night. The dual battery configuration of the TTech-81-2CCK allows for ample reserve power to enable built in repeater functionality. This enhanced configuration allows for extended linear deployments of multiple TTech-81-2CCK without the requirements of external repeaters stations and towers.
The TTech-81-LT has been designed as a quick deploy, integrated border security sensor system with photo and video confirmation of detected targets. This PIR sensor kit is mounted at ground level, establishing an invisible thin wall of detection extending out from the sensor.
Just like the TTech-81-CCK and 2CCK, the LT has a PIR sensor that has an extremely narrow field of detection, eliminating false alerts generated by common wide-angle PIR sensors. The LT also has a built-in automatic leveling circuit, allowing the PIR to actively adjust to environmental changes like heat and wind, not triggering false alerts.
The LT comes with a 12V battery pack that will provide power to the unit for a long period of time.
The TTech-81-LT has the same credentials as the TTech-81-CCKs, but is mounted at ground level instead of being elevated. This tactical kit has been designed to fill in tactical gaps in heavy terrain such as valleys and arroyos. Detection zones have a downward trajectory which fill in typically difficult areas of detection.
The TTech-80 PIR Data Interface Kit is designed to bring back life into your military grade long and short range sensors previously used with Monitron LCT and FAT sensor transmitters. It is now possible to use these rugged high grade sensors to trigger any other transmitter or camera system that will accept an external contact closure (depicted on the right) using Echo transmitter and battery pack to transmit alerts.
The TTEch-80 connects directly to PIR sensors and allows for full adjustment and programming from the simple internal setting. The PIRs can be powered directly from the Echo battery pack and used for tactical deployments or to trigger alerts or cameras from much longer ranges.

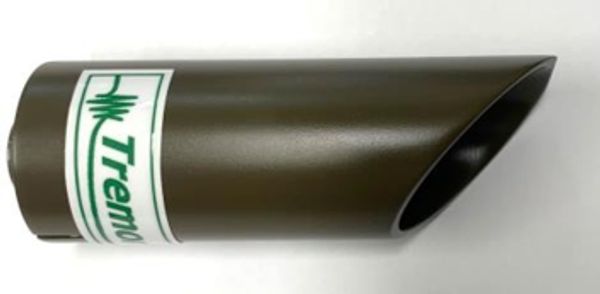

The TTech-82 generates an invisible passive infrared detection zone which will detect subjects and objects passing through the zone. Subjects can be detected at 160 + away and vehicles at 200 and beyond. Field-of-view 9 x 15 at a range of 160.
The TTech-82 PIR sensor may be used in conjunction with the TTech-80 Data Interface, cameras, and transmitters.
The TTech-83 is manufactured in a rugged, watertight, hermetically sealed housing which makes it the ideal sensor for harsh outdoor applications. This PIR sensor generates an invisible narrow field-of-view, passive infrared detection zone which will detect subjects and vehicles at long ranges. Subjects can be detected at 500'+ away and vehicles at 1,000' and beyond.
The TTech-83 PIR sensor may be used in conjunction with the TTech-80 Data Interface, cameras and transmitters.
The TTech-Field Tester was originally designed for use with the TTech-17 Fence Vibration Sensor. Now, the Field Tester may be used with any of the TTech sensors. This quick feed back device sounds an alert and/or lights a red LED when the sensor it is attached to is activated. The Field Tester reduces alerts over network communications during set up and provides feedback for installers testing sensor ranges.
The IRIS Data Transmitter may be connected to the TTech-S1 and S2. When triggered by the seismic sensor, the transmitter will relay that information back to the network allowing for quick location identification and type of trigger event.
The IRIS Camera may be used in conjunction with the IRIS Transmitter to provide a photo or video confirmation of triggered events. Activity triggered by fence, foot-step, and infrared sensors are sent to the IRIS Transmitter which triggers the IRIS Camera(s).
The TTech-17 Fence Vibration Sensor is designed to detect subjects cutting and climbing on various types of fencing.
The TTech-S1 & S2 Sensor detects footsteps and alerts you when subjects are approaching or walking in a restricted area.
