Seismic Footstep Sensors

TTech-S1

0-200+ foot detection

TTech-S2

0-200+ foot detection

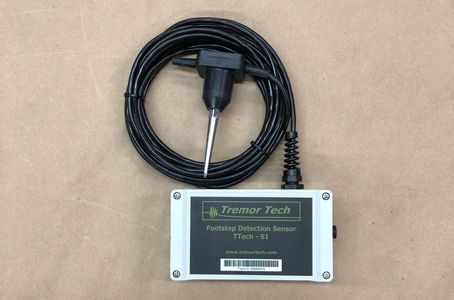

TTech-S1 & S2 Footstep Detection Sensors

The TTech-S1 and S2 seismic footstep detection sensors are specifically designed to detect the footsteps of subjects approaching or walking in restricted areas. The battery operated seismic sensors disregard extraneous events such as animals, rain, falling branches and vehicles when programmed for footstep

detection.


The TTech-S1 and S2 are fully programmable to fit various environmental conditions, from rocky soils to soft sandy trails. Adjustable parameters allow for the end user to select detection range, number of footsteps, speed of the subjects as well as time a gap between alarms to reduce repetitive alerts from subjects loitering in the area.  Common contact closures can be utilized to interface with any third party device. Commonly attached devices include cameras, transmitters, lights and independent security systems.

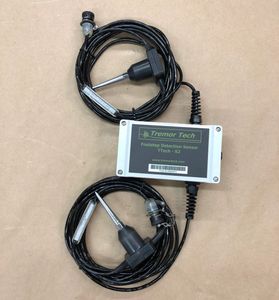

The TTech-S2 has all of the same features as the TTech-S1 with the exception that the TTech-S2 has dual seismic sensors to cover even larger target areas and additional sensors may be added for even larger detection zones.

Additional options

TTech-77 Seismic Geophone Cable With Pigtail

The TTech-77 Geophone is the seismic sensor interface device for the TTech-S2 Seismic Footstep Detection Sensors. Custom manufactured to withstand the harsh elements, this Geophone and cable will provide years of seismic detection. No-cut cabling and military grade connecters ensure proper function and easy recovery.


With an additional connector option, several Geophone cables may be attached to extend range and detection area.


TTech-78 Seismic Geophone Cable Without Pigtail

The TTech-78 Geophone is the end of line seismic sensor interface device for the TTech-S2 Seismic Footstep Detection Sensors. The TTech-78 is slightly less expensive than a TTech-77 and may be used to terminate larger cable strings used with the TTech-S2.


 Custom manufactured to withstand the harsh elements, this Geophone and cable will provide years of seismic detection. No-cut cabling and military grade connectors ensure proper function and easy recovery.

TTech-Field Tester

The TTech-Field Tester was originally designed for use with the TTech-17 Fence Vibration Sensor. Now, the Field Tester may be used with any TTech sensors. This quick feedback device sounds an alert and/or lights a red LED when the sensor it is attached to is activated. The Field Tester reduces alerts over network communications during set up and provides feedback for installers testing sensor ranges.


IRIS Transmitter

The IRIS Data Transmitter may be connected to the TTech-S1 and S2. When triggered by the seismic sensor, the transmitter will relay that information back to the network allowing for quick location identification and type of trigger event.

IRIS Camera

The IRIS Camera may be used in conjunction with the IRIS Transmitter to provide a photo or video confirmation of triggered events. Activity triggered by fence, foot-step, and infrared sensors are sent to the IRIS Transmitter which triggers the IRIS Camera(s).

Other Products

Passive Infrared Sensor

Passive Infrared Sensor

Passive Infrared Sensor

 The TTech-81-CCK and 2CCK have been designed as a quick deploy, with photo and video confirmation of detected targets.

Learn more

Fence Tremor Sensor

Passive Infrared Sensor

Passive Infrared Sensor

 The TTech-17 Fence Vibration Sensor is designed to detect subjects cutting and climbing on various types of fencing.

Learn more
